WCAM20-D(T)XXXXCA
Product Features
- Wide voltage input (85-264Vac, 100-370Vdc)
- Low ripple, low noise
- Multiple protections
- EMC up to level 4
- Low power consumption, environmentally friendly, no-load loss <0.3W
- Ultra high efficiency, efficiency can reach 83%
- Operating temperature: -40~+70℃
- Isolation voltage up to 3000VAC
- 3 years quality guarantee
- 100% full load aging
The WCAM20-D/TXXXXCA series products are high-stability 2/3 output compact (70*48*23.5mm) onboard module power supplies. This series of module power supplies features small size, high reliability, high isolation voltage, and high cost-effectiveness. The series is mainly used in smart buildings, industrial control, charging stations, industrial automation, etc. When applied in environments with more severe electromagnetic compatibility, the application circuit must be referenced.
Category:
Outdoor viewing thermal imager
Key words:
Products
Product Introduction
Product Model List

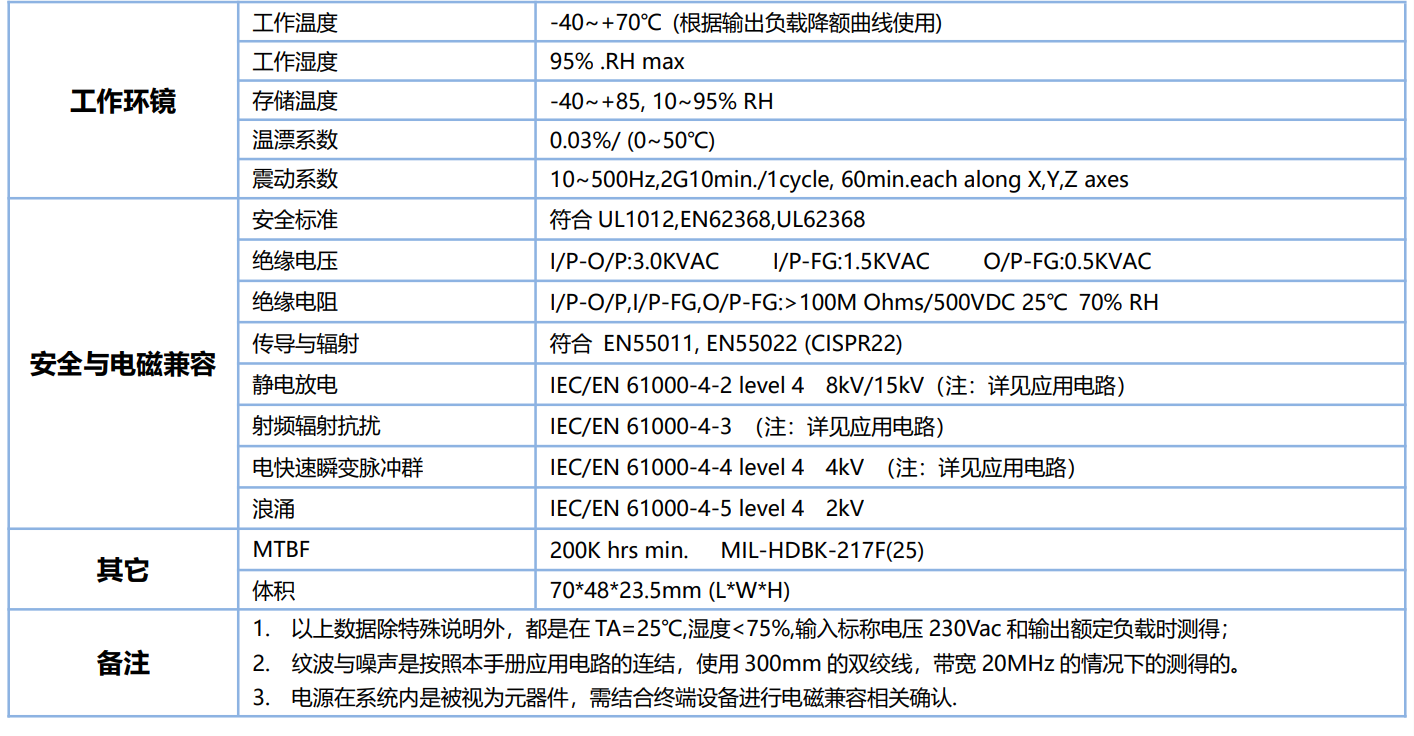

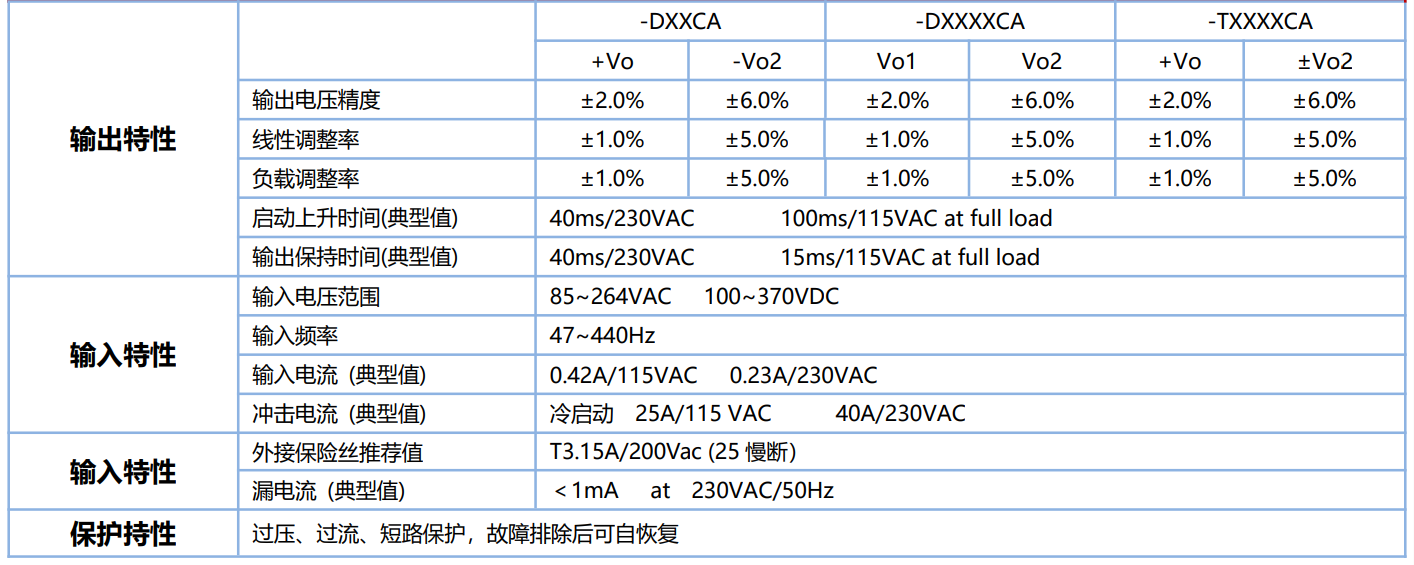

General Characteristics

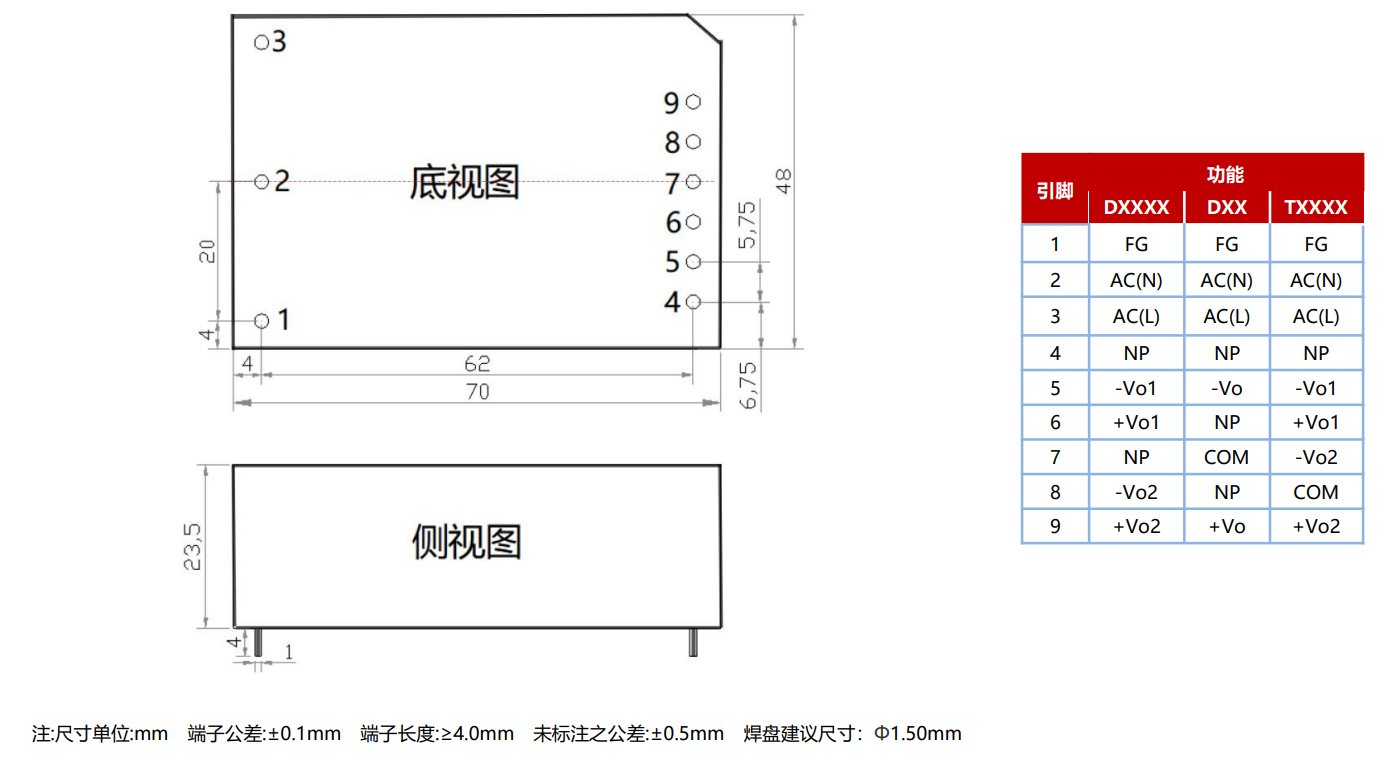

Mechanical Dimension Diagram

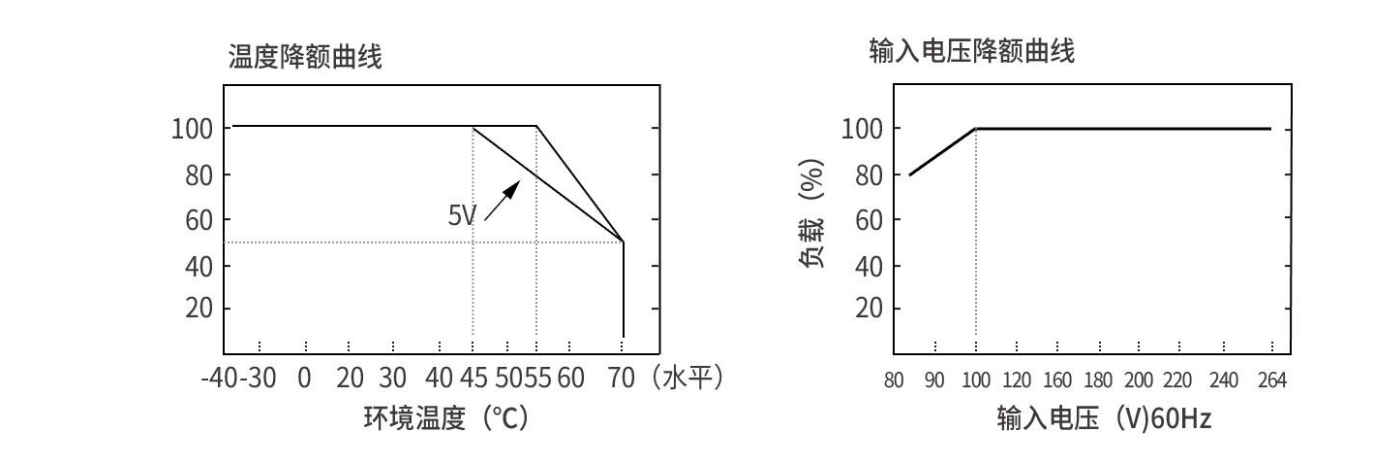

Derating Curve Diagram
Typical Application Diagram
