WC-PD13K120A-R1
Product Features
- Compliance with IEEE802.3af standard
- 39V~57V wide operating voltage range
- Maximum output power up to 13W; Rated output: 12V/1.1A
- The output ripple is less than 150 mV(Applied capacitance)
- Conversion efficiency can be as high as 86% (input: 48V output：12V@1.1A)
- It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge
- PCB standard size: 50.8*14*15.6mm

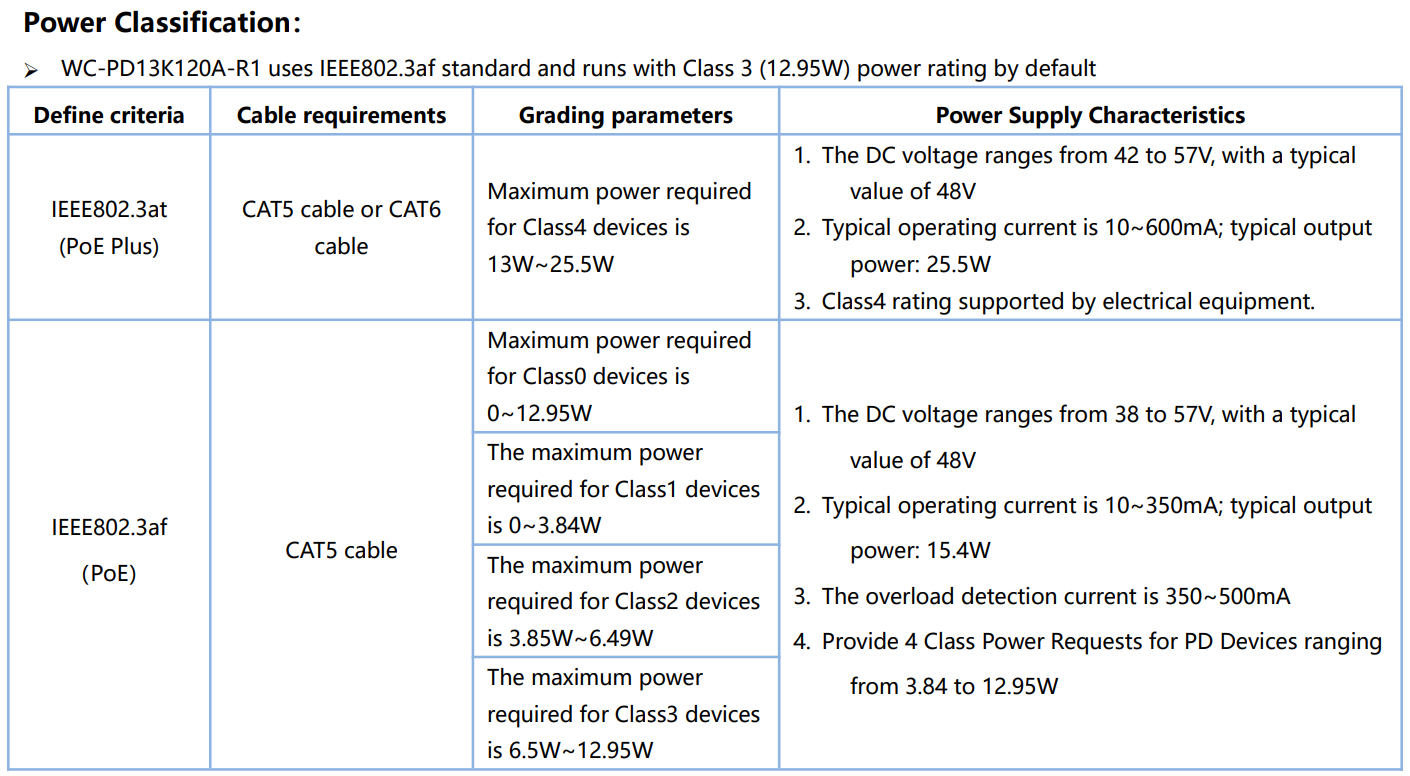

- Class 3 IEEE802.3 PD
- Input/Output: isolate 1500Vdc
- High reliability: The design meets the 5 million hour average failure interval
Category:
Outdoor viewing thermal imager
Key words:
Products
Product Introduction

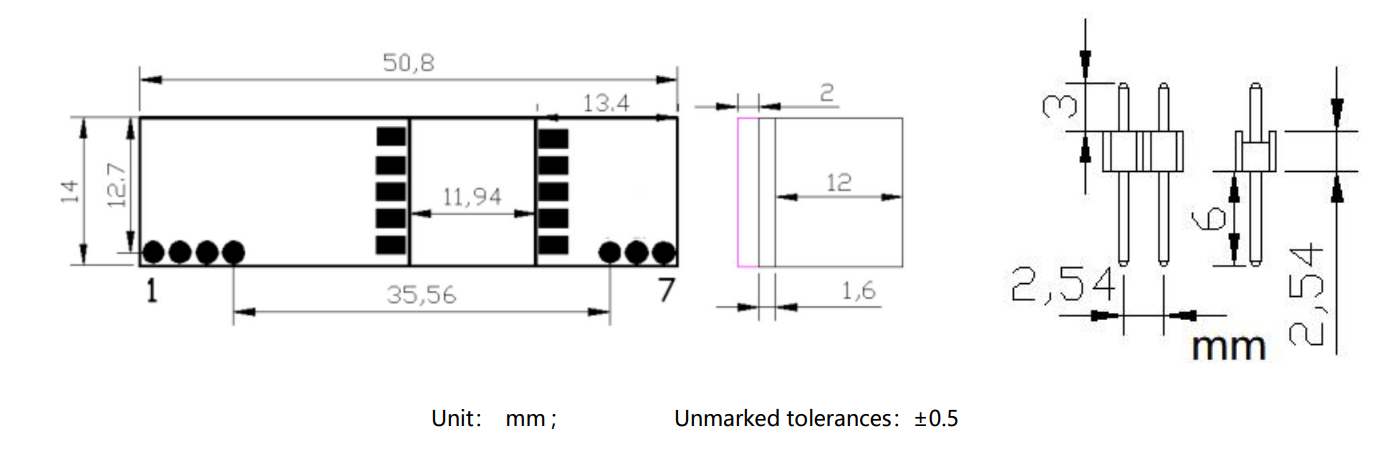

Mechanical dimensions

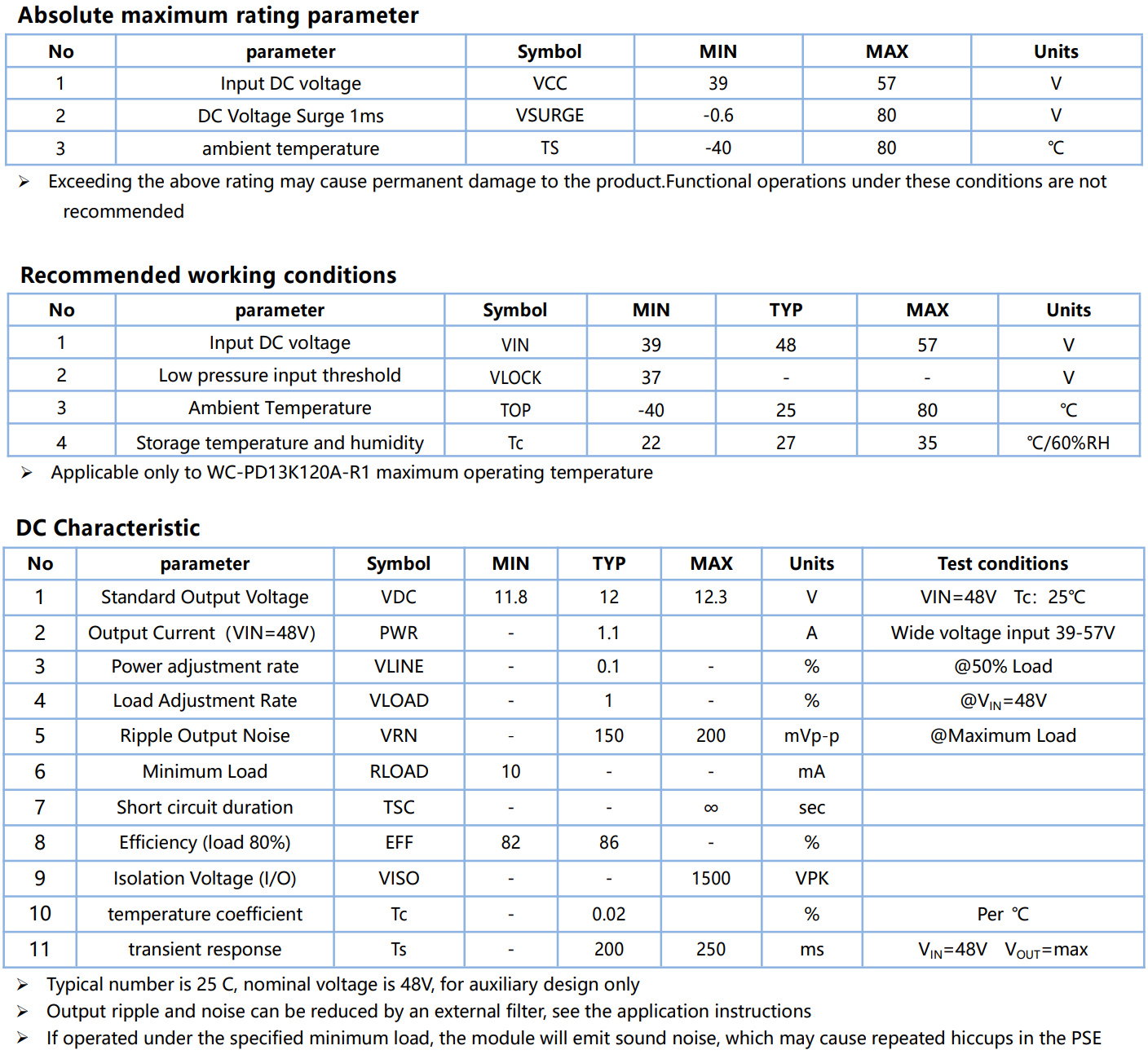

Electrical Characteristics
Function Description

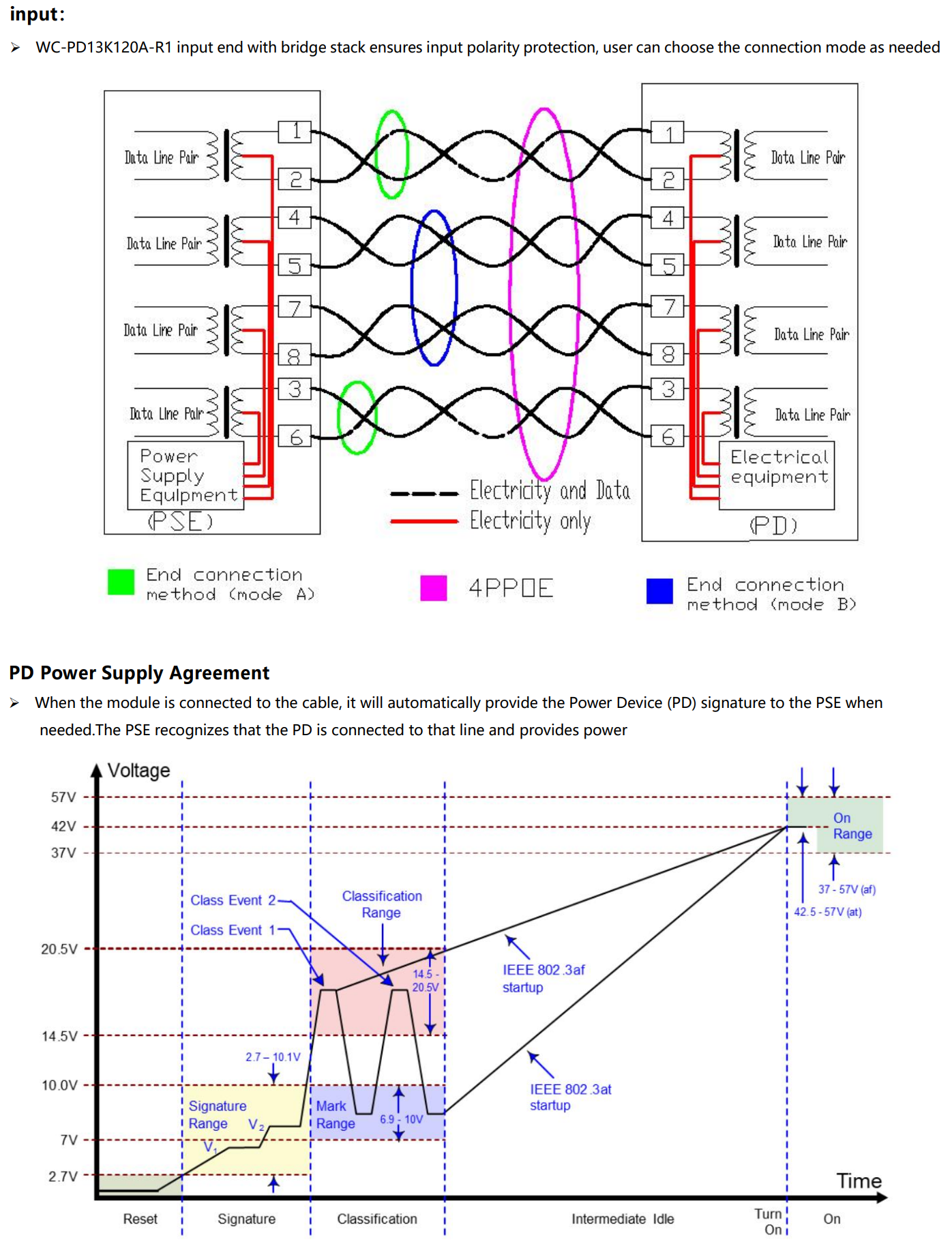

Typical Connection Diagram

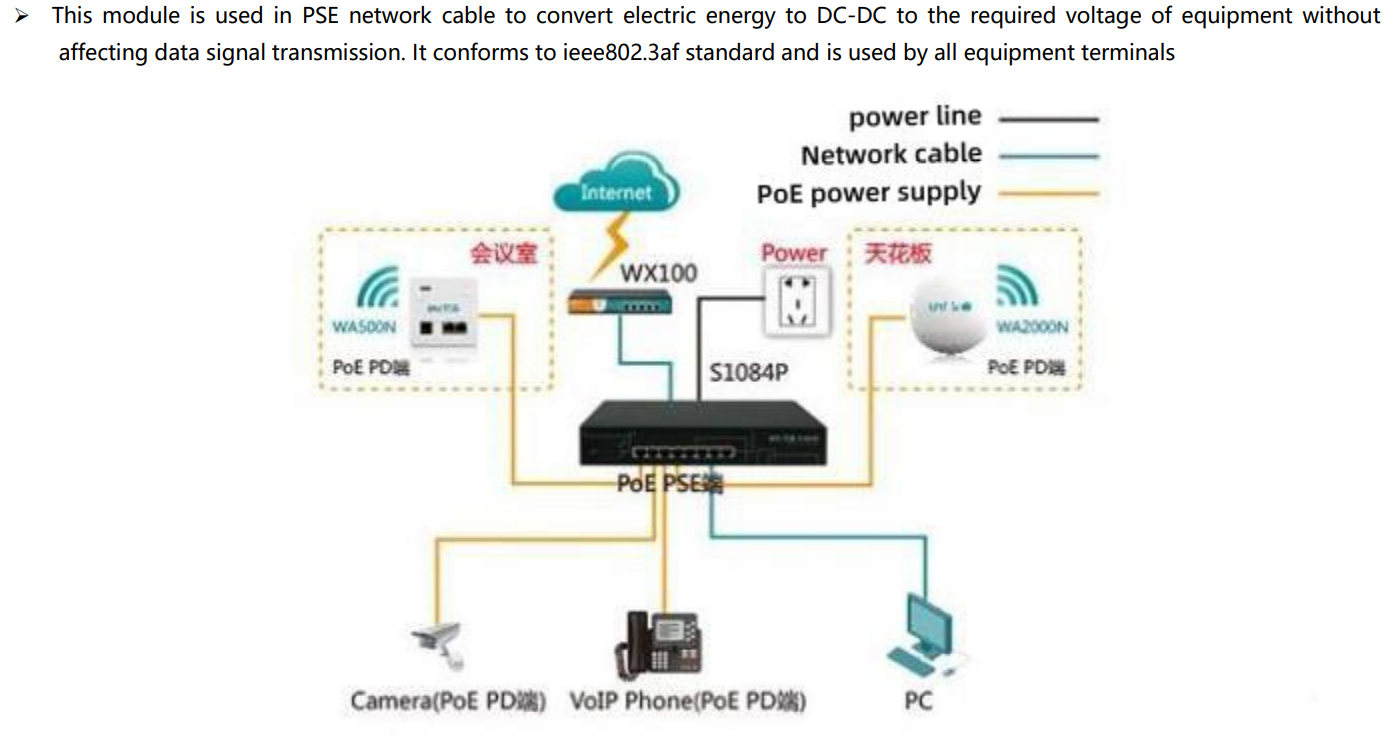

Typical Applications

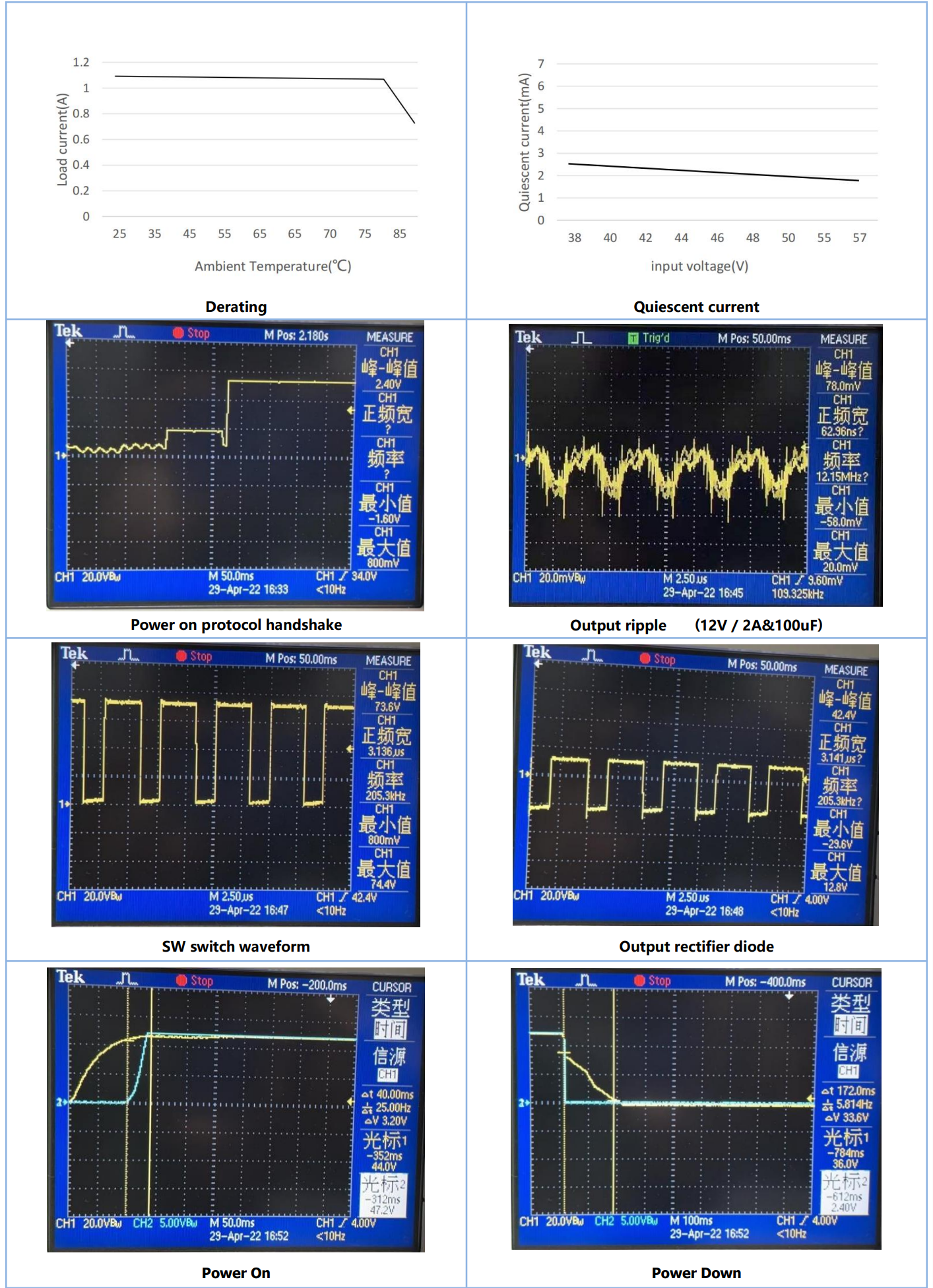

Test Waveform Diagram
