WC-PD25J120A-R1
Product Features
- Compliance with IEEE802.3at standard.(downward compatibility AF)
- 42V~57V wide operating voltage range.
- Maximum output power up to 25W; Rated output: 12V/2.1A.
- The output ripple is less than 50 mV.
- Conversion efficiency can be as high as 92% (input: 48V output：12V@2.1A)
- It has excellent reliability and circuit protection such as over current, short circuit, under voltage and surge
- PCB standard size: 25.0*20.0*12.2mm
- Class 4 IEEE802.3 PD
- Input/Output: isolate 1500Vdc
- High reliability: The design meets the 5 million hour average failure interval
The PoE (power over Ethernet) module is a traditional Category 5 and 6 twisted pair Ethernet power supply
module based on the IEEE 802.3AF PoE standard
Category:
Outdoor viewing thermal imager
Key words:
Products
Product Introduction

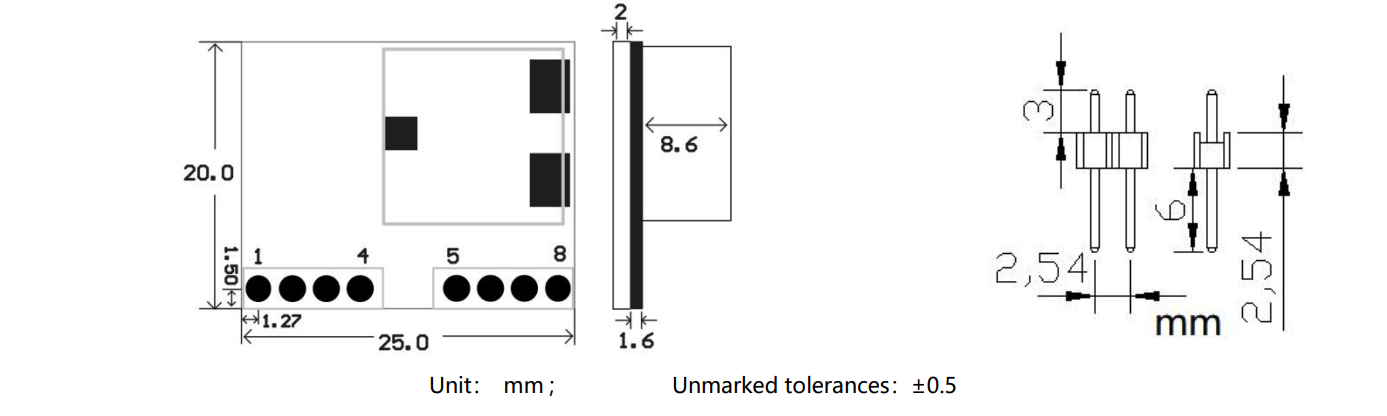

Mechanical dimensions

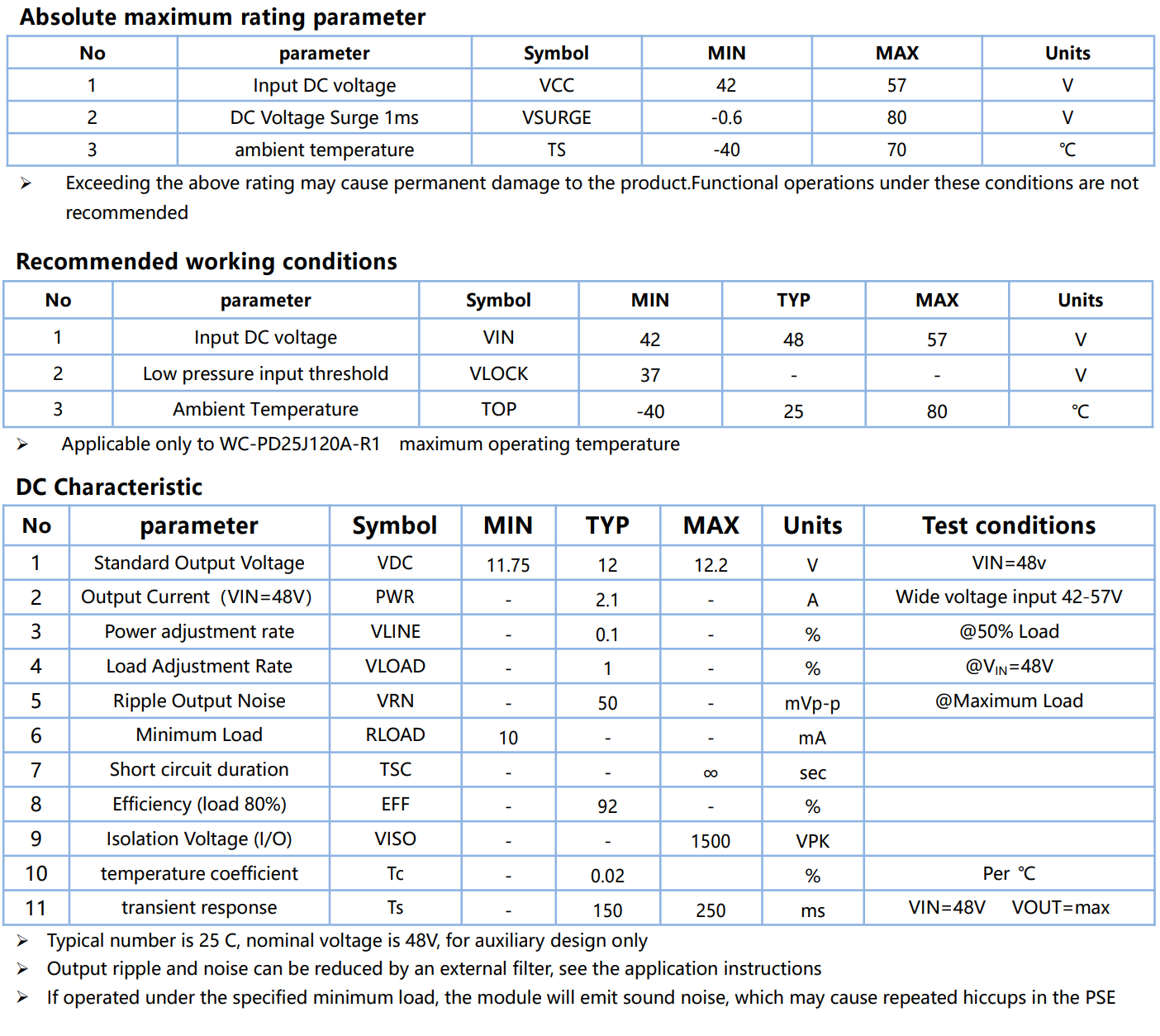

Electrical Characteristics

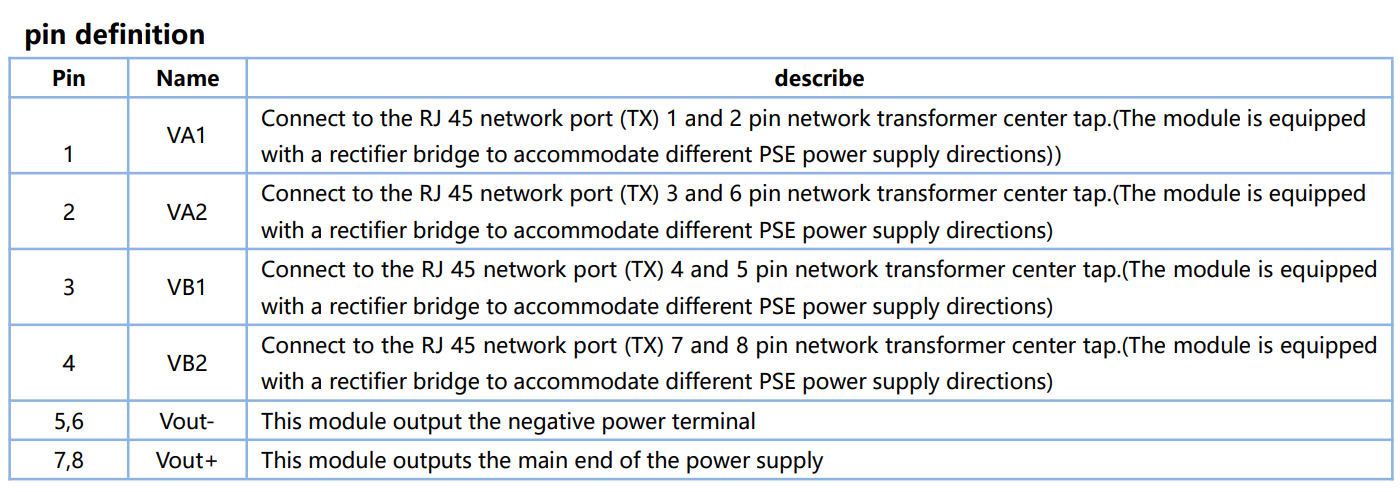

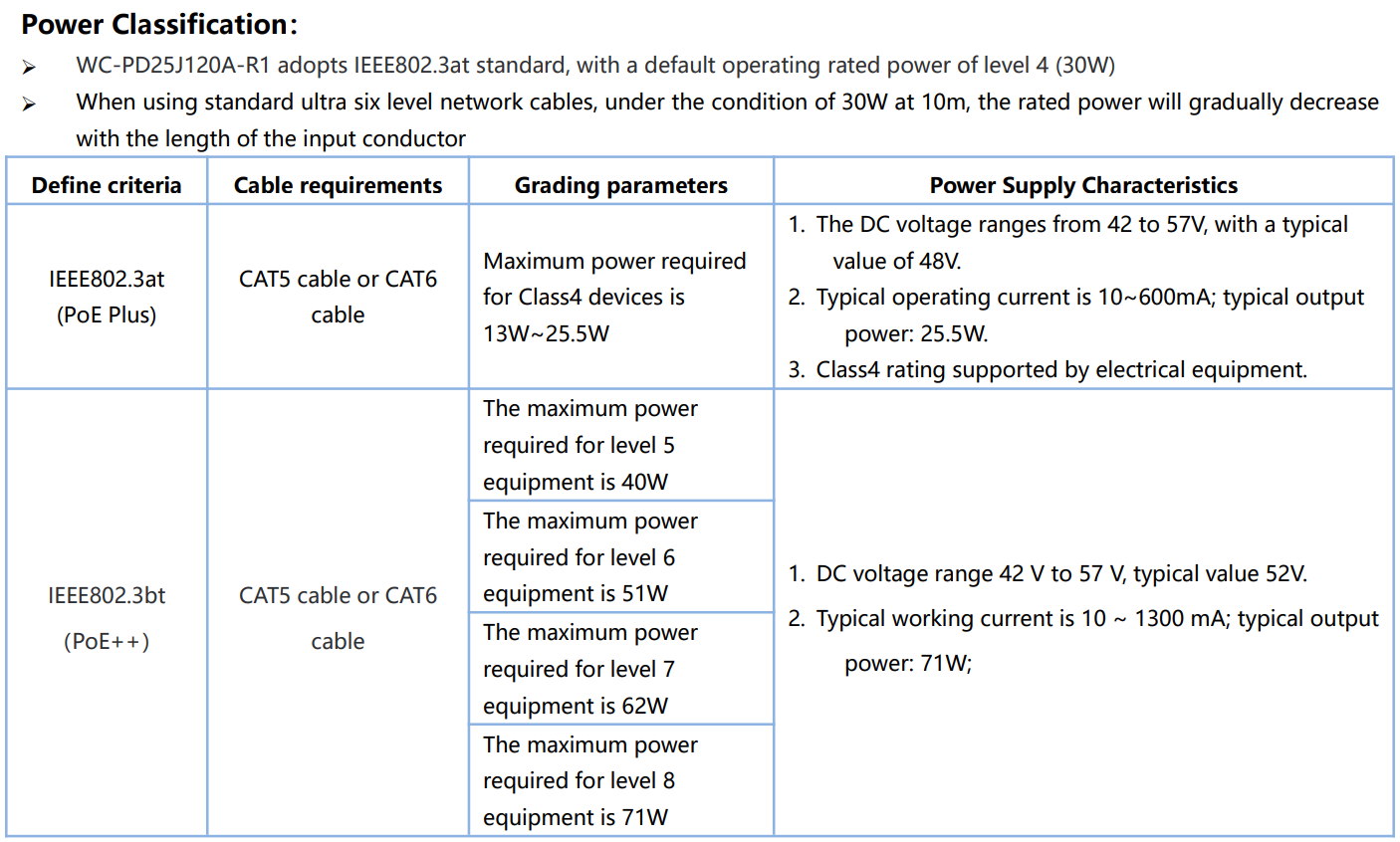

Function Description

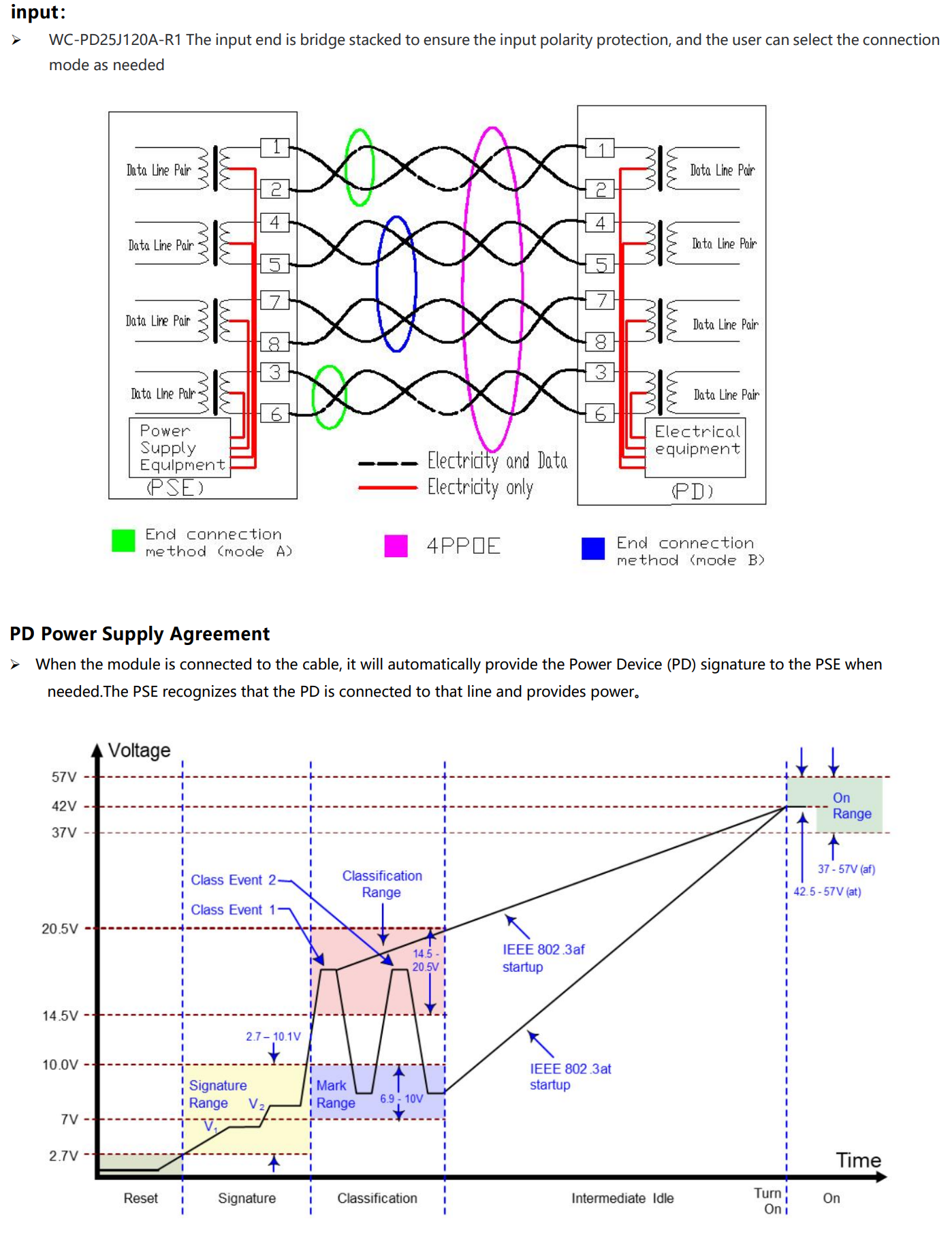

Typical Connection Diagram

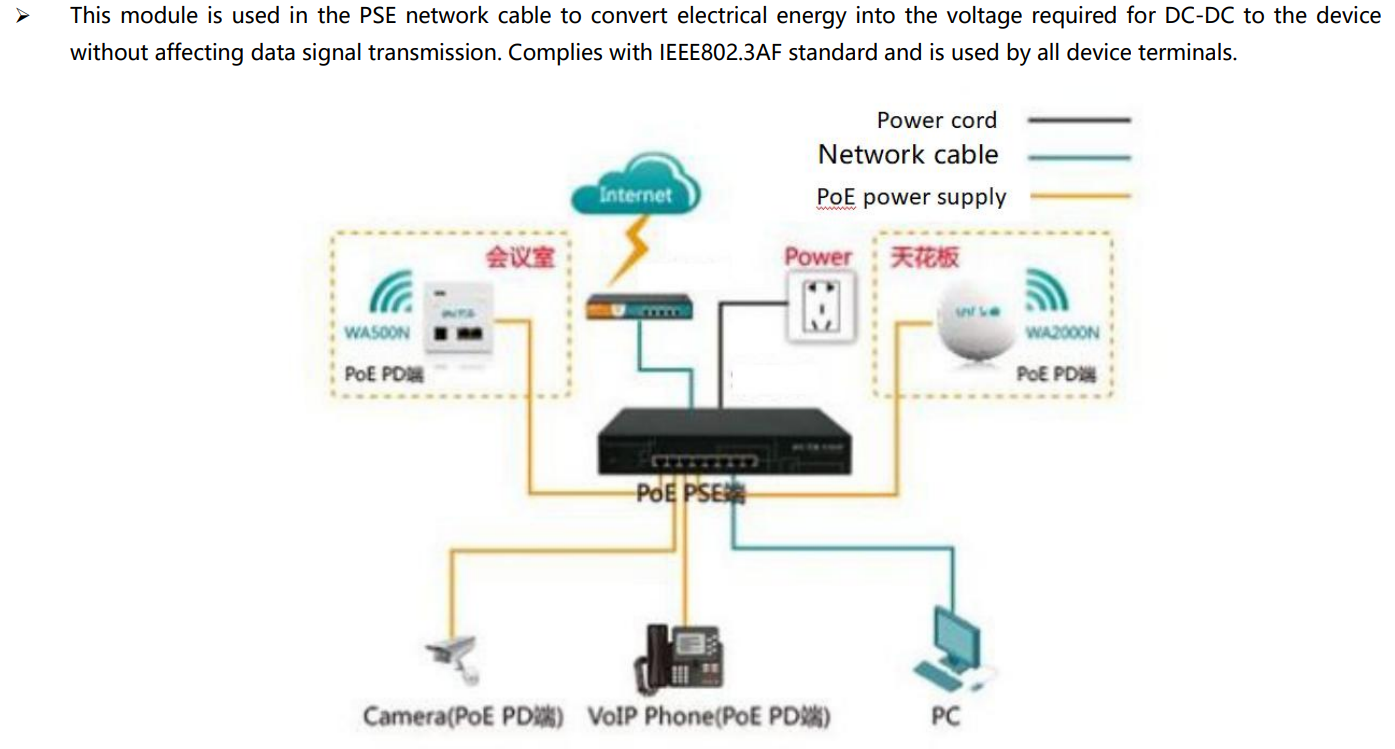

Typical Applications

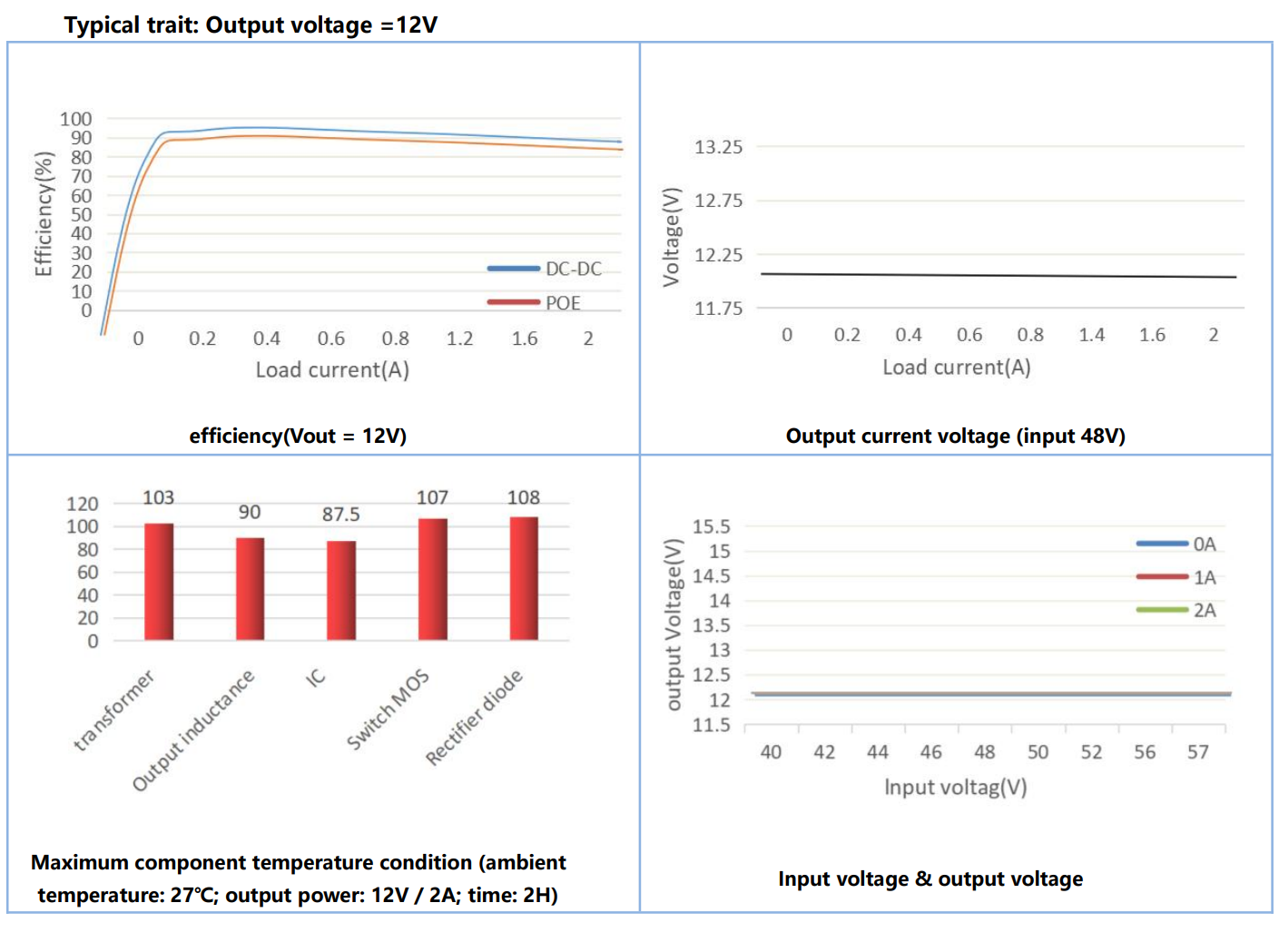

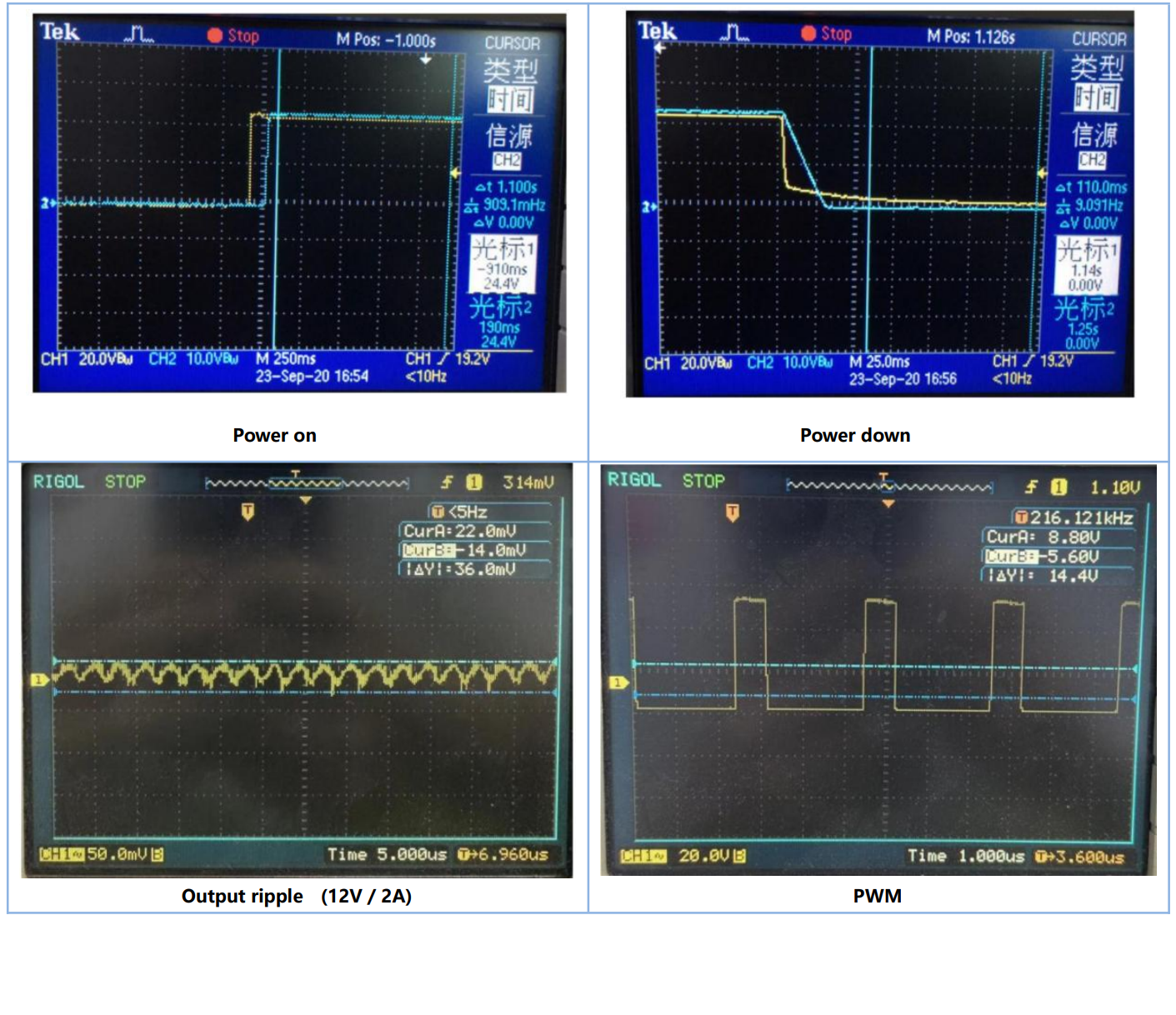

Test Waveform Diagram
